Application scope:Mifare ULtralight CThe high-frequency electronic tag adopts Mifare ultralight C chip, which is applicable to ticket, subway ticket tag, mobile NFC payment tag, access management, asset management, book management, file management, luggage, clothing tag and other fields.
Product specification:
| model |

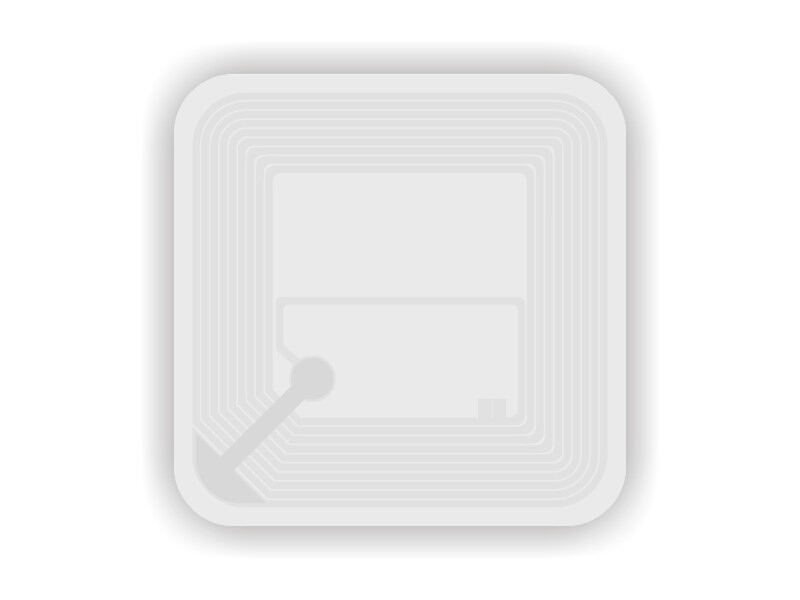

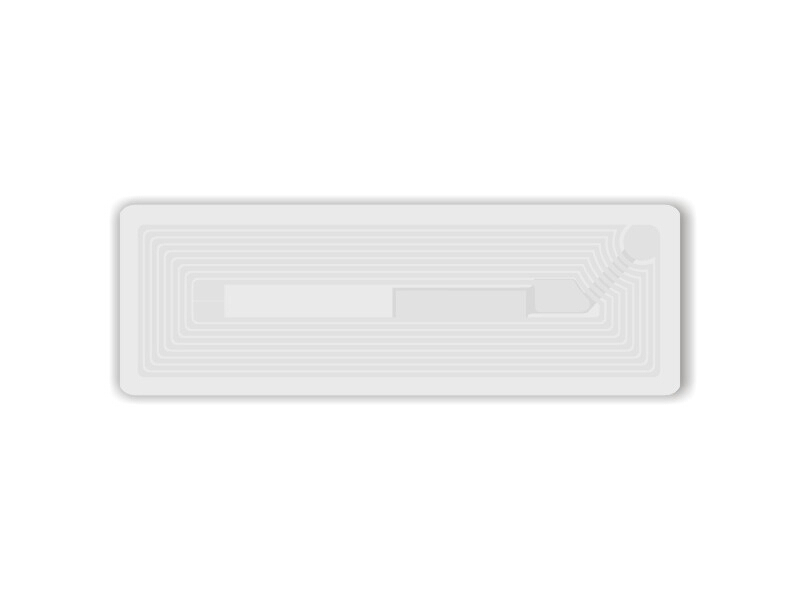

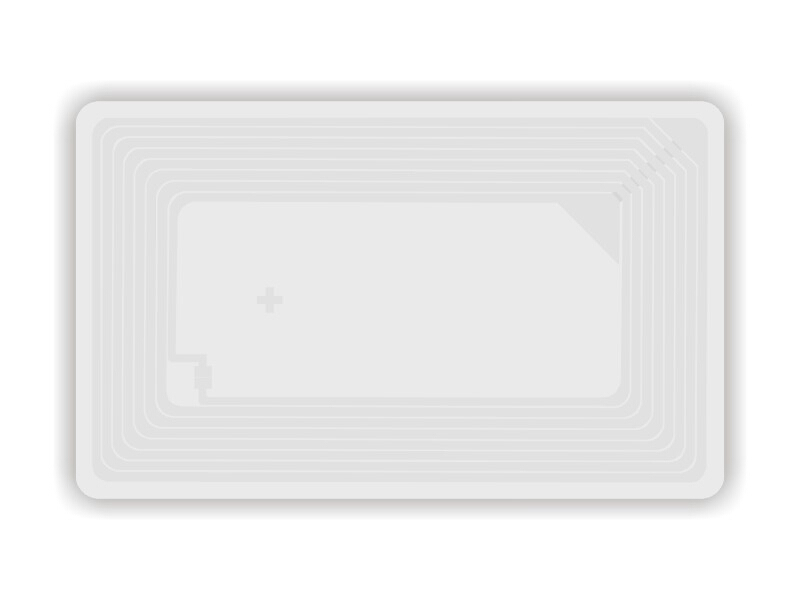

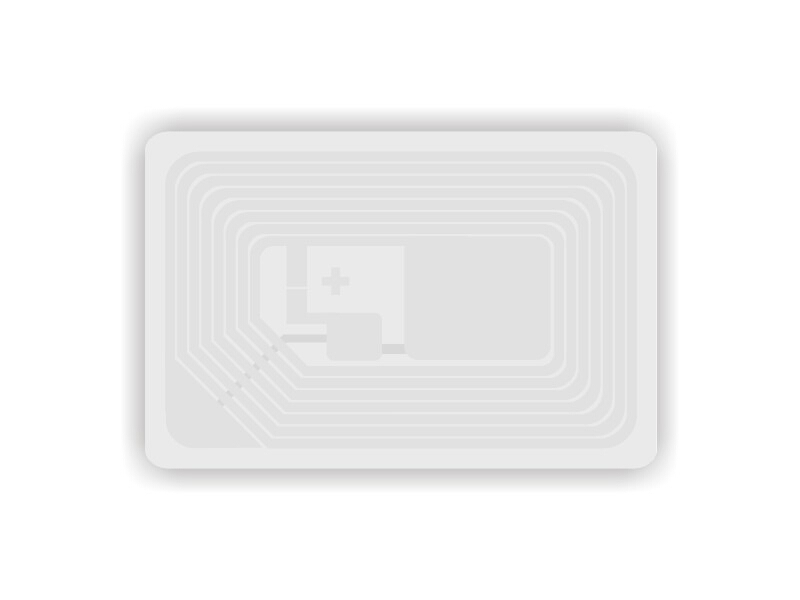

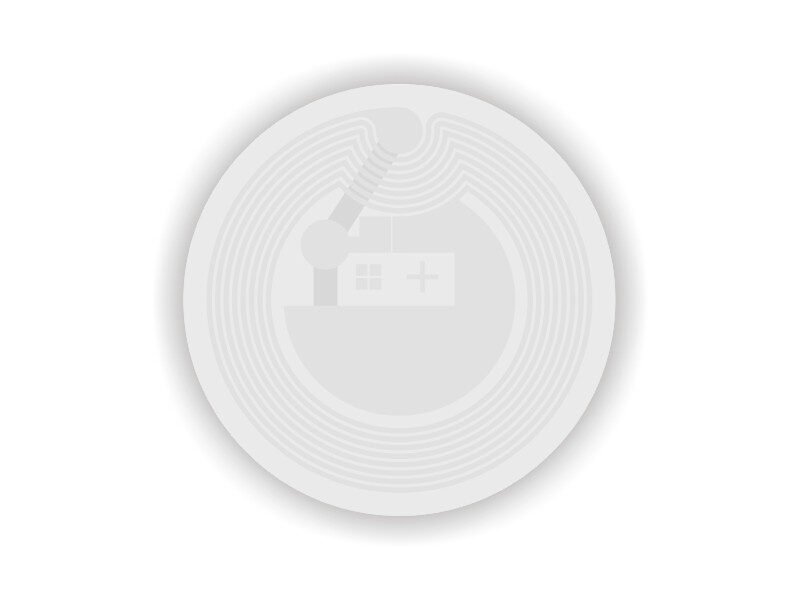

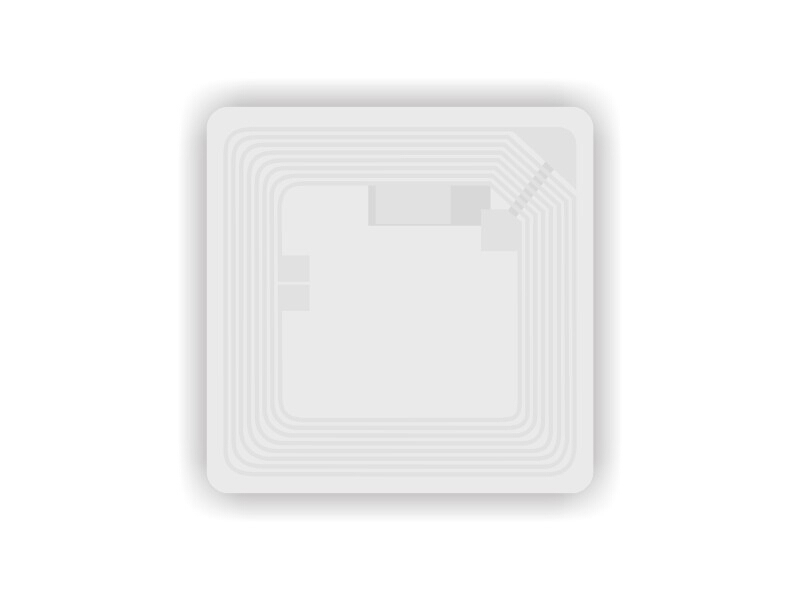

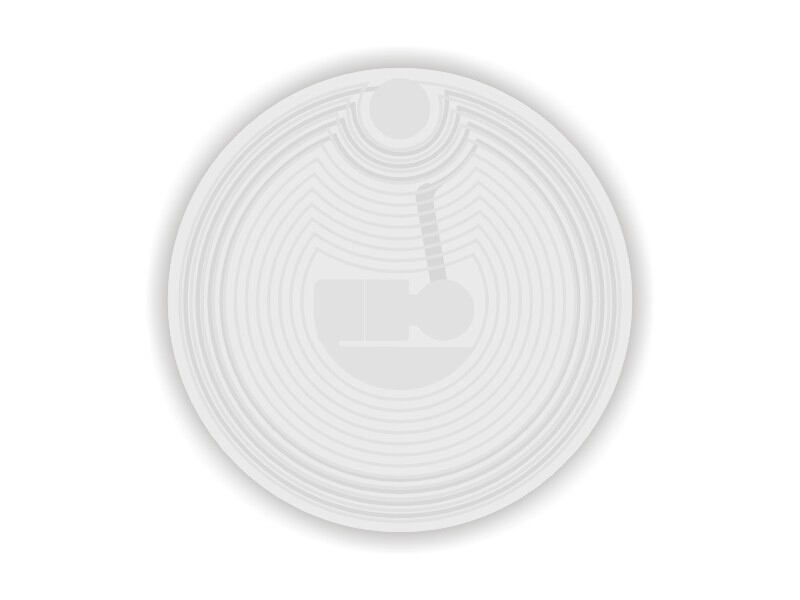

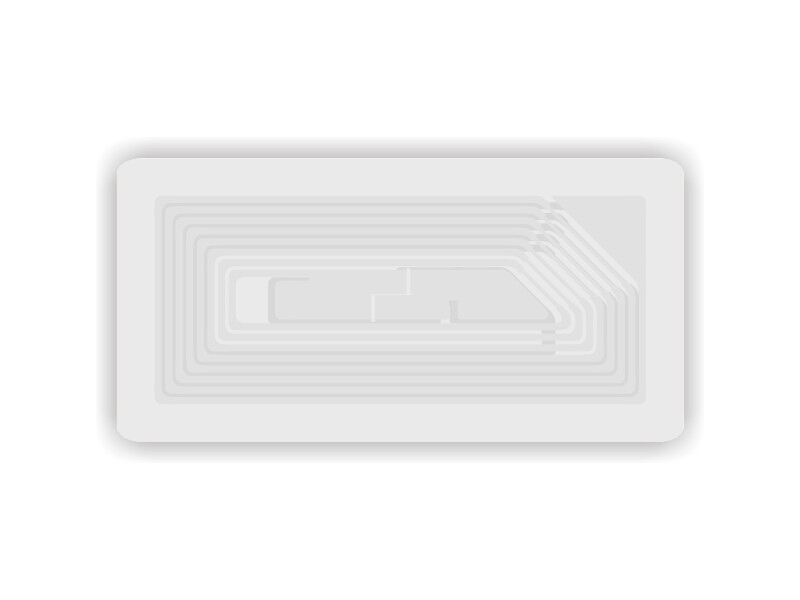

picture |
Antenna size |
Crosscut size |
Longitudinal spacing (antenna) |
Horizontal spacing (antenna) |
Coil width |
| LIJIA |
85.5*54mm(5*5) |
76*45mm |
||||
| INLAY |
76*45mm |
85.5*54mm(5*5) |
||||
| HH-M001 |
|
76*45mm |
85.5*54mm |
|||
| HH-M002 |
|
52*15mm |
56*18mm |
10mm |
32mm |
47mm |
| HH-M003 |
|
Diameter:22mm |
Diameter:25mm |
8mm |
25mm |
47mm |
| HH-M004 |
|
22*35mm |
25X38mm/25X40mm |
8mm |
25mm |
47mm |
| HH-I002 |
|
45*45mm |
50*50mm |
8mm |
12mm |
57mm |
| HH-M007 |
|
32*32mm |
35*35mm |
8mm |
15mm |
47mm |
| HH-M008 |
|
11*26mm |
15*30mm |
20mm |
21mm |
47mm |
| HH-M010 |
|
Diameter:25mm |
Diameter:30/35/40/45mm |
|||
| LIJ-001 |
45*76mm |
85.5*54mm |
Electronic performance:Chip: NXP Ultralight
Frequency: 13.56MHz
Protocol: ISO 14443a
Capacity: 64K bytes
Package information:Surface substrate: coated paper /pet/ synthetic paper /pvc
Inner diameter of paper core: 76mm
Quantity per roll: 1000-5000 pieces (dry label)
1000-4000Film (self-adhesive label)
Winding direction: chip up
Quality inspection: 100% full inspection, and the bad standard has been replaced
Comprehensive performance:Working environment: -40 ℃ to 85 ℃
Storage environment: -5 ℃ to 30 ℃
Data validity: 100000 times
